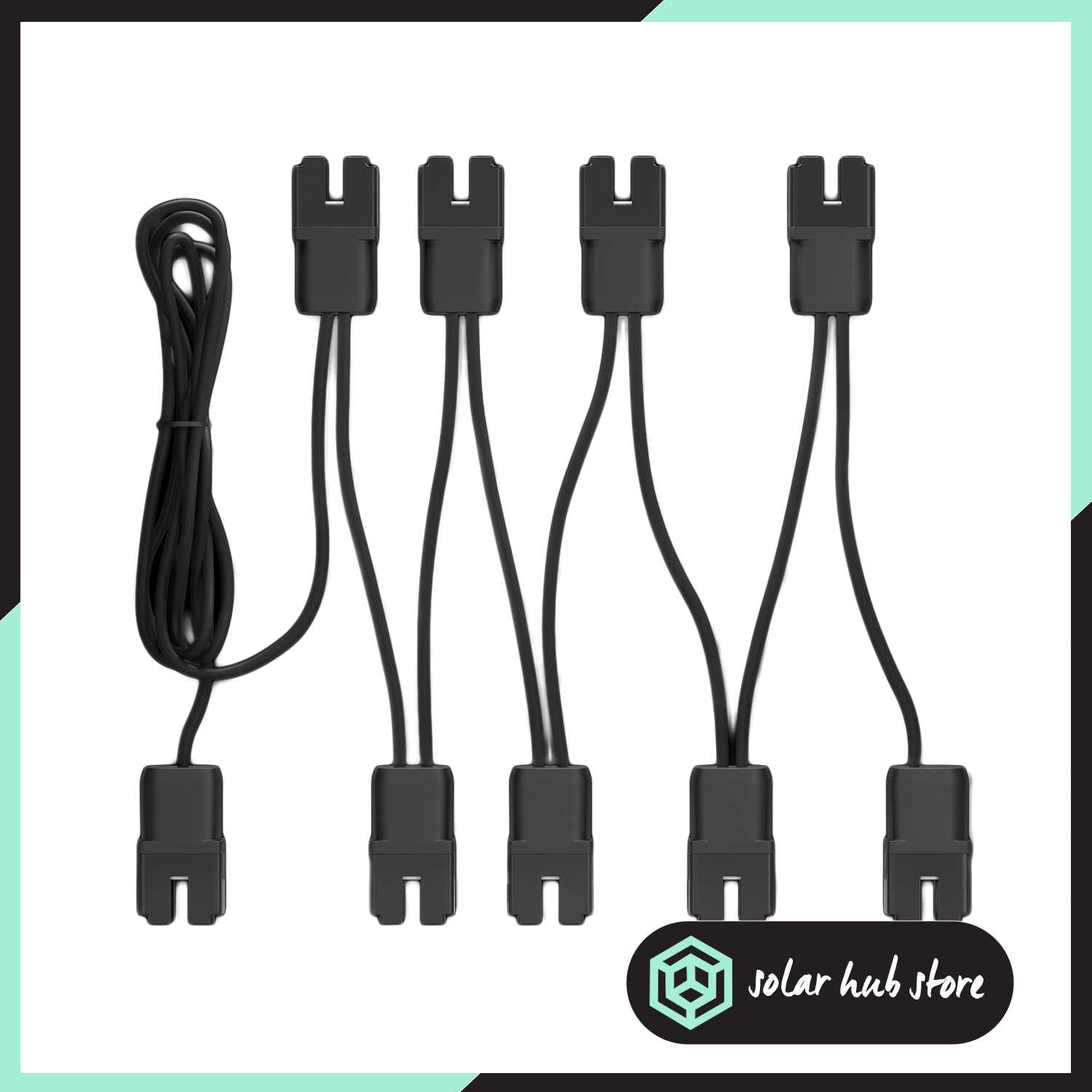

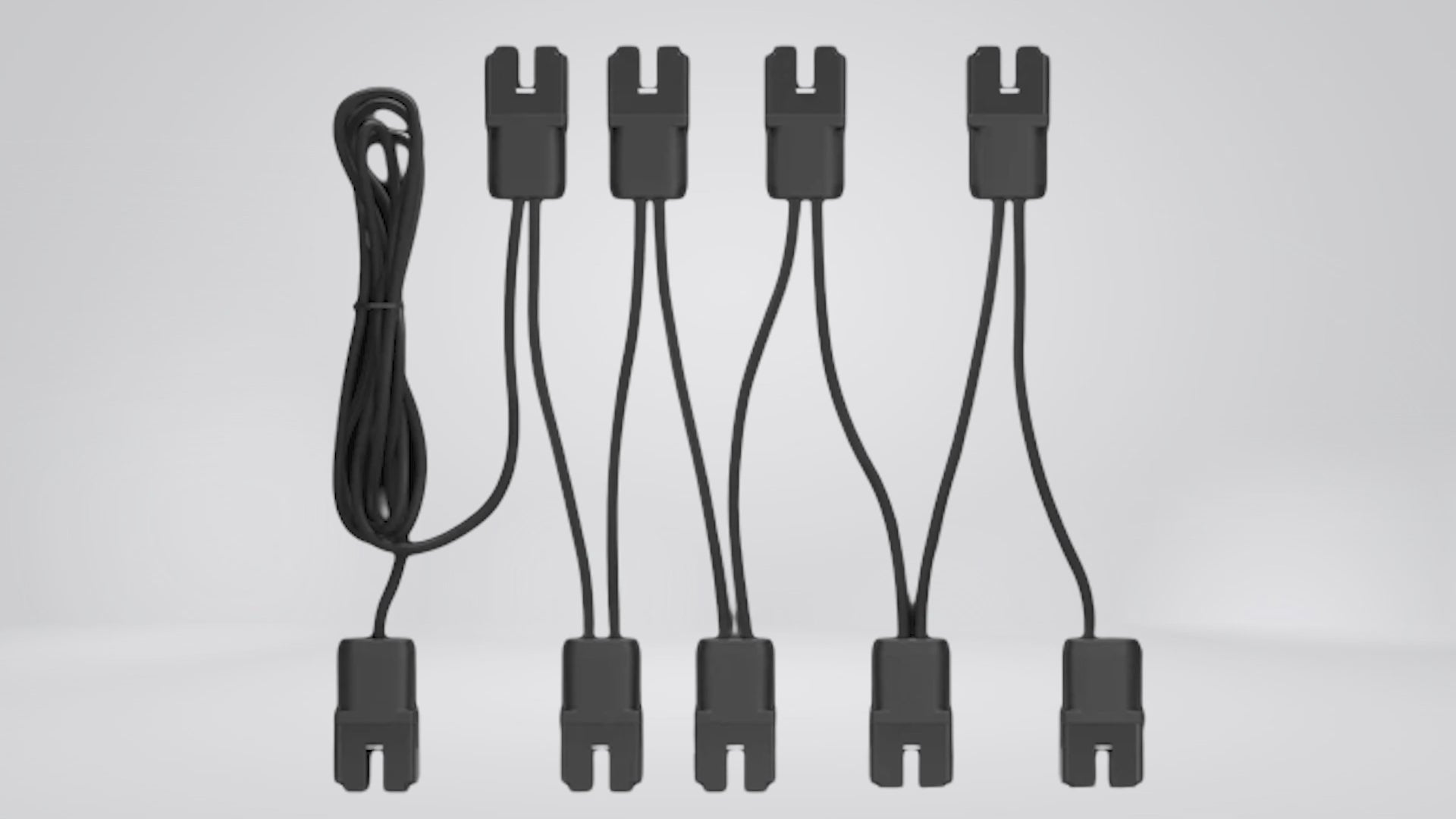

Efficient Wiring Solution for 72 Cell Solar Panels - Q Cable (Landscape)
PRODUCT DESCRIPTION
The Q Cable (Landscape, 72 cell) is an essential component in any solar panel installation project. Designed with the latest technology, this cable provides a reliable and efficient way to connect solar panels in a landscape configuration. Its 72-cell configuration allows for a greater number of panels to be connected, making it ideal for larger residential and commercial projects.
The Q Cable (Landscape, 72 cell) is constructed with high-quality materials, ensuring its durability and long lifespan. The cable's weather-resistant properties make it suitable for use in all types of environments, including harsh weather conditions. The cable's design also incorporates safety features, including anti-snagging technology, ensuring that installation is safe and secure.
DETAILS
- 2-wire cable is 50% lighter than the previous generation Enphase cable
- New cable numbering simplifies wire management
- Plug-and-play connectors speed up installation
- Link connectors eliminate cable waste
- UL Listed
TECHNICAL SPECIFICATIONS
- Voltage rating: 600 V (connector rating 250 V)
- Size/Max nominal voltage: 12 AWG/277 VAC
- Connector spacing: 2.3 m (7.5 ft)
- PV module orientation: Landscape (72-cell)
- Connector count per box: 240
- Length: 2.3 m connector spacing
- Weight: 1.2 lbs per drop
COMPATIBILITY
- IQ Microinverters
- IQ Cable
WHAT'S IN THE BOX
- 1 drop of IQ Cable (landscape, 72-cell) with preinstalled IQ Connectors
Enphase IQ Cable (72-Cell Landscape) - Microinverter Cable
Efficient Wiring Solution for 72 Cell Solar Panels - Q Cable (Landscape)
PRODUCT DESCRIPTION
The Q Cable (Landscape, 72 cell) is an essential component in any solar panel installation project. Designed with the latest technology, this cable provides a reliable and efficient way to connect solar panels in a landscape configuration. Its 72-cell configuration allows for a greater number of panels to be connected, making it ideal for larger residential and commercial projects.
The Q Cable (Landscape, 72 cell) is constructed with high-quality materials, ensuring its durability and long lifespan. The cable's weather-resistant properties make it suitable for use in all types of environments, including harsh weather conditions. The cable's design also incorporates safety features, including anti-snagging technology, ensuring that installation is safe and secure.
DETAILS
- 2-wire cable is 50% lighter than the previous generation Enphase cable
- New cable numbering simplifies wire management
- Plug-and-play connectors speed up installation
- Link connectors eliminate cable waste
- UL Listed
TECHNICAL SPECIFICATIONS
- Voltage rating: 600 V (connector rating 250 V)
- Size/Max nominal voltage: 12 AWG/277 VAC
- Connector spacing: 2.3 m (7.5 ft)
- PV module orientation: Landscape (72-cell)
- Connector count per box: 240
- Length: 2.3 m connector spacing
- Weight: 1.2 lbs per drop
COMPATIBILITY
- IQ Microinverters
- IQ Cable
WHAT'S IN THE BOX
- 1 drop of IQ Cable (landscape, 72-cell) with preinstalled IQ Connectors
Documentation
DATA SHEET
-
q-cable-accessories-ds-en-usPDF
This cable is easy to install and comes in various lengths, making it suitable for any solar panel installation project. The Q Cable (Landscape, 72 cell) is compatible with other Enphase products, including microinverters and IQ Combiner boxes, allowing for seamless integration into your solar energy system.
Investing in the Q Cable (Landscape, 72 cell) is a smart choice for any solar panel installation project. It provides the perfect balance of performance, durability, and safety, ensuring that your solar energy system runs efficiently for years to come.
